Basic Concepts

The o-rings are circular-shaped seals, or torus, manufactured from an elastomeric compound. They are used for preventing liquid or gas to flow free. Correct sealing is reached by the effect of the restrain of the o-ring within its cavity or "gland"; as it squeezes and stretches inside its gland, it blocks all free spaces, therefore blocking all possible filtrations.

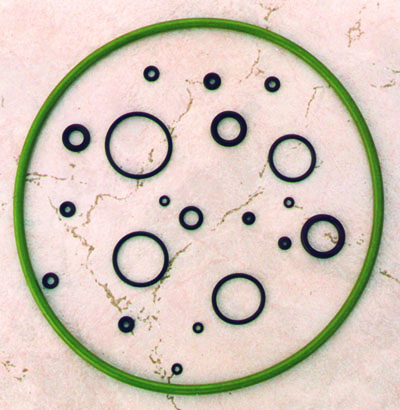

O-Rings samplesThe most commonly used material for this type of seals is Nitrile, but according to specific needs for each application, o-rings can be manufactured in Silicone, Viton®, EPDM, among others. Hardness can also vary according to the functions the o-ring will perform, using harder compounds for performance in higher pressures and softer ones for lower pressures.

demo-picThese are some of the advantages we can mention of using o-rings to ensure sealing properties:

  • They bear a wide range of pressures, temperatures and tolerances
  • They don't need fittings
  • Light-weighted
  • Occupy little space

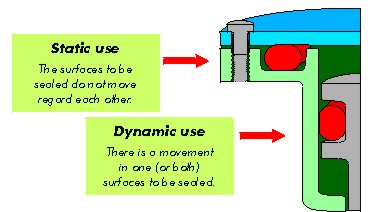

  • They can be used for static and dynamic applications.

Sizes

Regarding sizes, there are several norms for the standarization of the o-rings dimensions, usually relative to the country of origin. The more commonly used internationally are the following:

Country Norm
United States
Great Britain
Germany
Sweden
France
Japan
SAE AS-568A
BS1806 - BS4518
DIN 3771
SMS 1586
NF T 47 501
JIS B2401-77

Neoprene® y Viton® son marcas registradas de DuPont Dow Elastomers.
Neoprene® and Viton® are registered trademarks of DuPont Dow Elastomers.
